How do I add a new version of a plan? - Web Version

You can add a new version of a document you uploaded before.

If you are the administrator of the project, you do not need to be the author (uploader) of the document.

Important: The X and Y coordinates must correspond to those of the original version. When uploading a new version of a plan, the pins (localisations of points) are also displayed on the new version. If the new version of the plan does not have the same dimensions, the points will be displayed wrongly: they keep the same coordinates as the ones of the original version.

  • To add a new version, click on the document...
  • ... then click on the 3 dots next to the document to click on Add version.

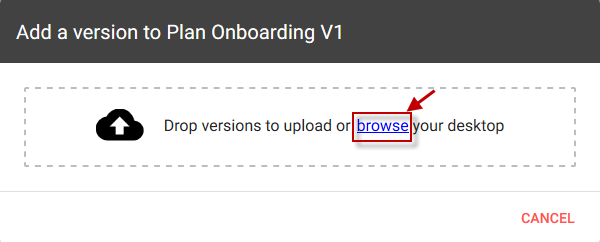

  • Another window appears, on which you can click on Browse to upload a document from your desktop as the new version of a document.
  • After uploading a new file, you will see on the left 2/2 instead of 1/1. This means that there are now two versions of the document.

Look at the version of a plan:

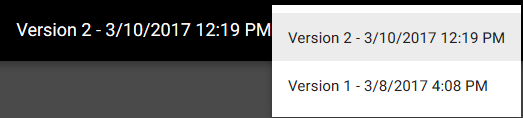

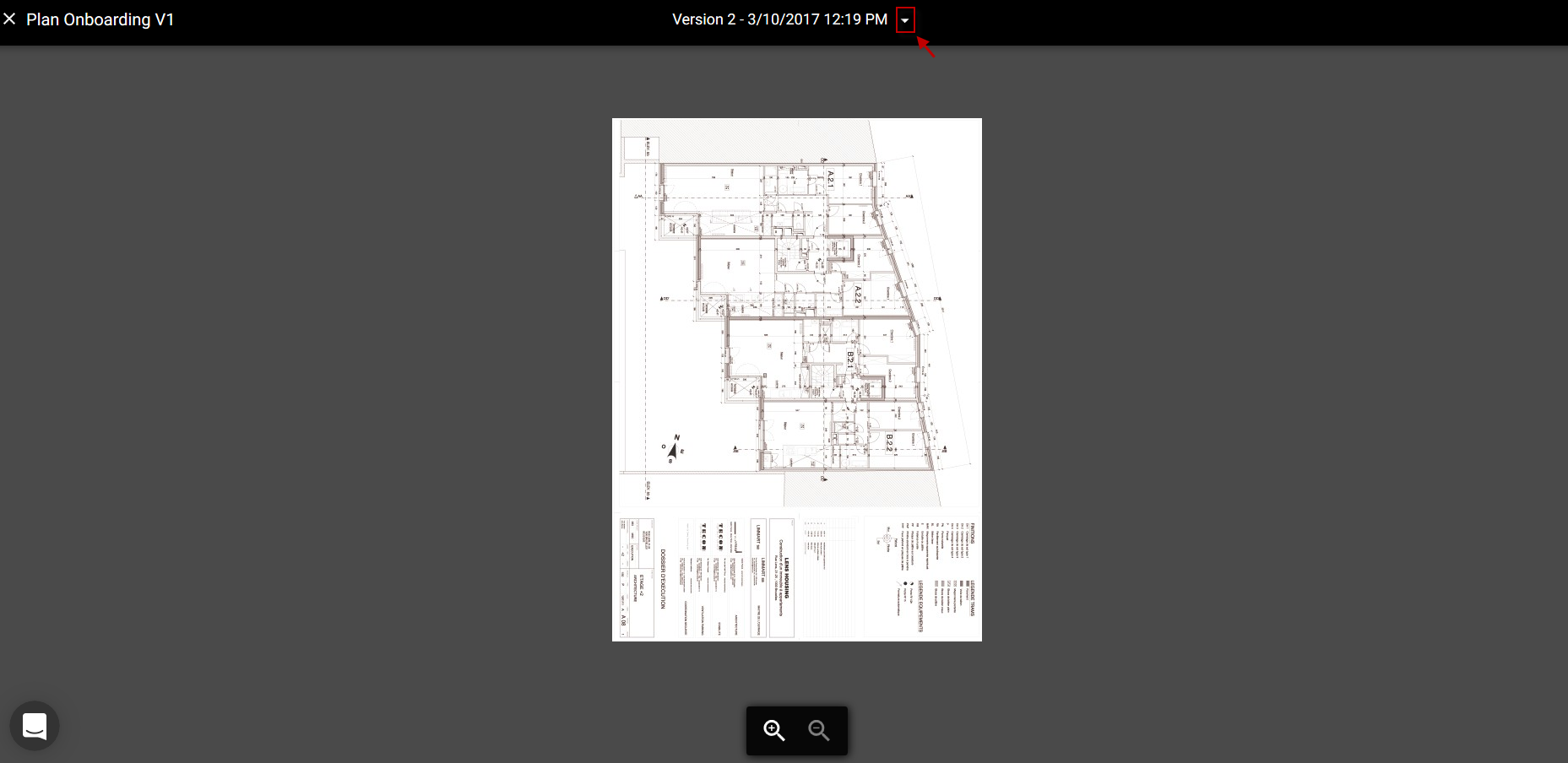

  • When you double click on the document, it opens in full screen. You can then click on the dropdown menu to see all the versions of the document.
  • Select the version you want to look at

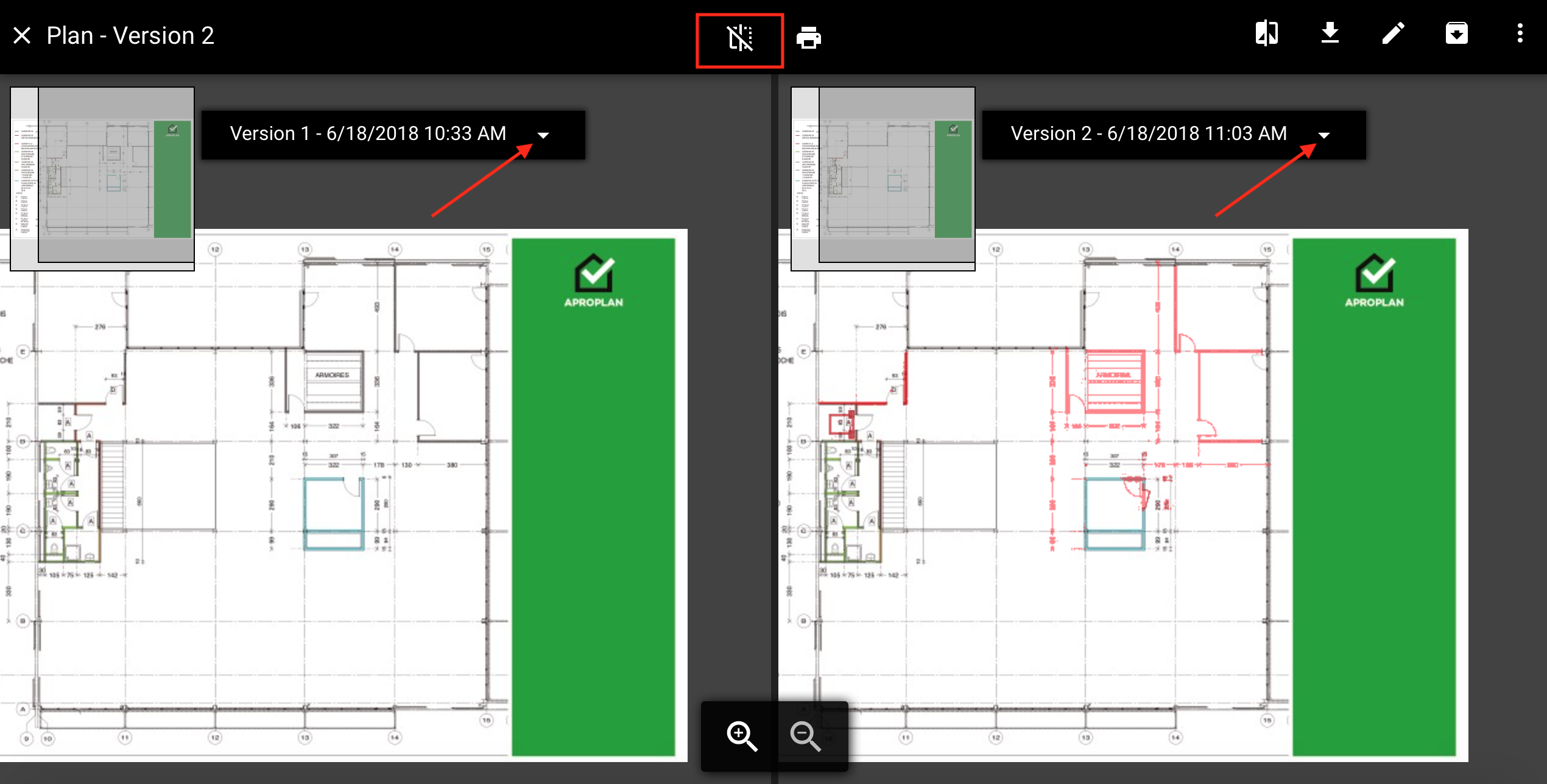

Compare two versions of a plan

  • Select one of the versions you want to look at

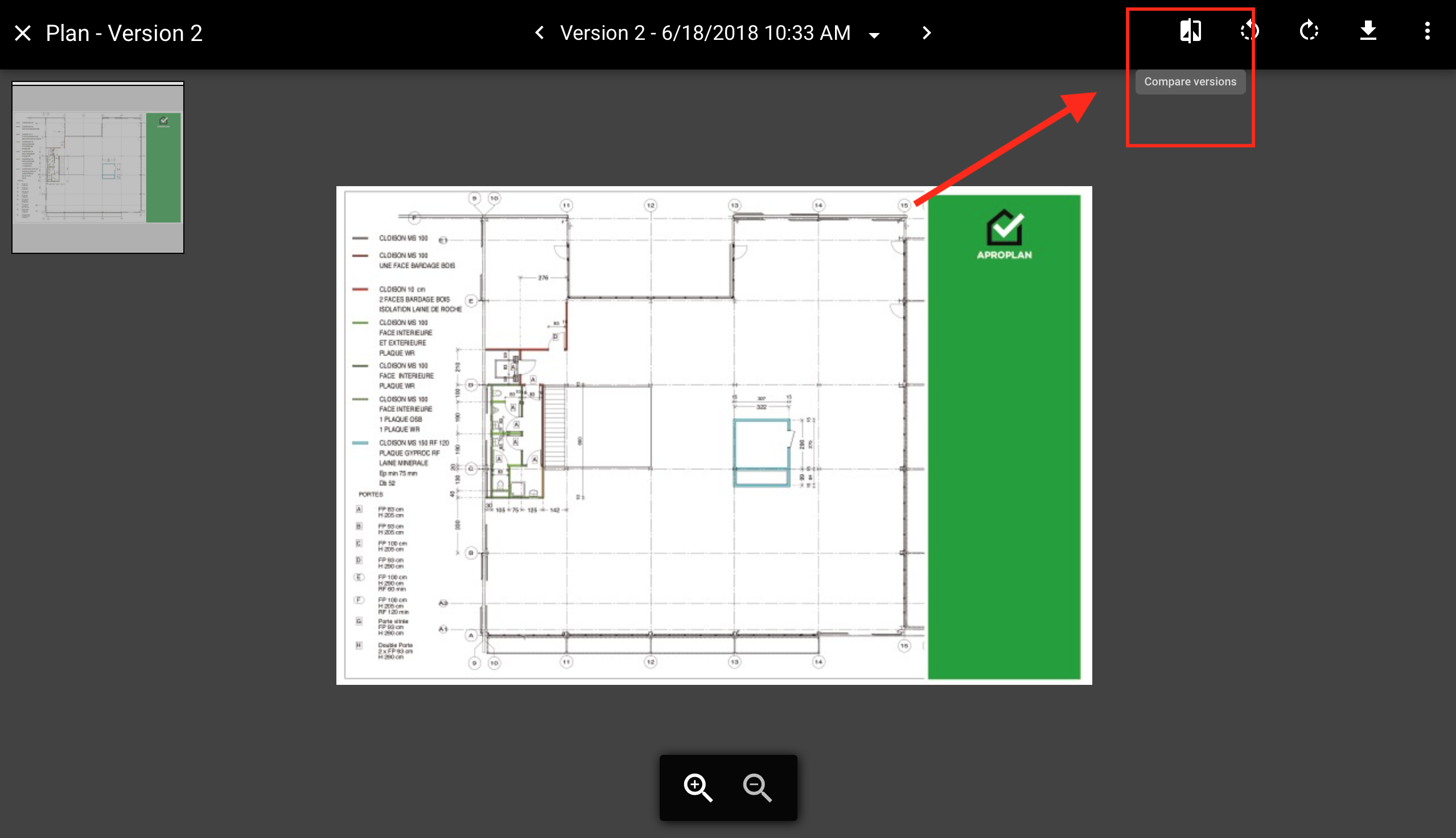

  • Click on the icon compare versions

If multiple versions are available

  • You can click on the small arrow to see all the versions of the plan.
  • You can also click on the icon mirror on the top of the page.

ℹ️ℹ️ Any update on your plan will be automatically reflected (in red) with the ability to compare different versions of your plans.

Got a problem? Contact our support here or ask your questions online directly on the app.
